The case: a weatherproof body at the top of the residential range

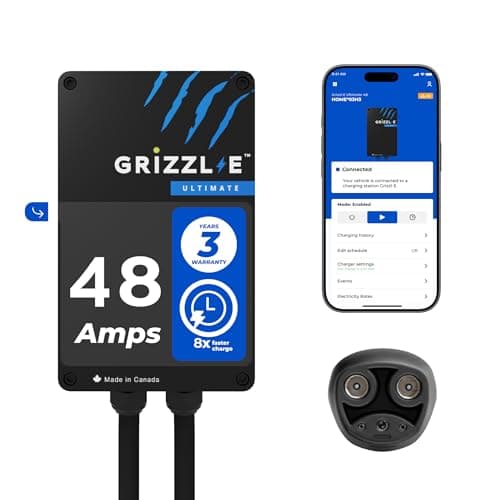

There is a persistent gap in the home charger market. The units built to survive a genuinely exposed wall tend to sit at 40 amps, and the units that reach 48 or 50 amps tend to be molded plastic aimed at a garage. If your charger is going outside in a northern climate and you want the fastest AC charging a house can supply, the list of honest options is short. The Ultimate 48A is on it.
Grizzl-E publishes a UL Type 4 indoor/outdoor rating on a metal case, and — the figure we would actually shop on — an operating range of −30°C to +50°C. An enclosure rating tells you about water and dust; a published temperature range tells you about January. Most brands publish the first and stay quiet about the second, which is why we keep pointing at it. At 10.25 x 6.25 x 3.75 inches it is the same compact box as the rest of the line.
The unit is UL/cUL listed under file E510712, meaning it has been independently tested against the ANSI/UL 2594 standard that governs EV supply equipment. As with the Classic Connect, Grizzl-E does not publish an ENERGY STAR listing for this model — a finding worth knowing if a utility rebate is part of your budget, and one we cover in full on our ENERGY STAR roundup.
Charging speed, worked out
Forty-eight amps at 240 volts is about 11.5 kW. At our standard reference of roughly 3.5 miles of range per kWh, that is about 40 miles of range per hour. Over a ten-hour overnight window, roughly 400 miles — more than almost any household removes from a battery in a day.
Against the 40-amp Classic Connect’s 34 miles an hour, you are buying about six miles per hour. We would be doing you a disservice to dress that up: for a single car driven normally, it will never be the difference between a charged car and an uncharged one. Where it earns its keep is narrower and real — recovering 250 to 300 miles overnight after a long trip, or rotating two EVs through one charger on alternating nights, which our two-EV roundup covers.
One check before you buy at this tier, because it is the most common way people overpay: confirm your car’s onboard AC charger rating. The charger sets the ceiling, not the floor. A vehicle with a 7.7 kW onboard charger will draw 7.7 kW from this unit and 7.7 kW from a 40-amp one — identical. Our how many amps guide works through matching the charger to the car and the panel together.
The install is the real decision
This is hardwire-only, and 48 amps means a 60-amp circuit. NEC Article 625 treats EV charging as a continuous load, so the circuit is sized to 125% of the draw — 48 × 1.25 = 60. That has three consequences worth pricing before you commit.
You lose portability entirely.There is no plug, so the charger cannot come with you when you move and cannot travel to a relative’s 14-50 outlet. If you rent, this is the wrong shape of product — see our renter picksinstead. It also means a failure outside warranty is an electrician’s visit rather than a thirty-second swap, which our hardwired vs plug-in comparison covers in full.
The wiring costs more than at 40 amps. Heavier conductors, a bigger breaker, and a longer run all scale up. Our installation cost guide breaks down what actually moves a quote.
Your panel may simply not have it.If the load calculation says there is no room for 60 amps, you are looking at a service upgrade that can cost several times the charger. The useful hedge here is that Grizzl-E publishes selectable current at 40, 32, 24 and 16 amps — so you can install on a smaller circuit now and turn it up later if the electrical situation changes. Run the numbers first with our panel capacity guide.
The software, and why OCPP is the interesting part
The Ultimate connects over 2.4 GHz Wi-Fi — on what Grizzl-E describes as a new extended-range antenna, which is a sensible fix for the actual problem, since a detached garage is one of the worst Wi-Fi locations in a house. It pairs with the Grizzl-E Connect app for charging statistics, schedules, remote control and utility demand/response programs. If pairing is where you get stuck, our Wi-Fi setup guide covers the band-splitting trick that fixes most failed connections.
The differentiator is OCPP support. Almost every home charger speaks only to its manufacturer’s cloud, which means the useful life of the software is entirely the vendor’s decision. An OCPP-capable charger can be managed by third-party platforms and adopted into utility programs without the manufacturer’s blessing. For most households this will never come up. In year seven, when a proprietary app has been quietly retired, it is the difference between a charger and a smart charger.
Who should buy it — and who should skip it
Buy itif you are hardwiring anyway, your panel genuinely has 60 amps to spare, and the charger is going somewhere exposed — an open driveway, a carport with no walls, a climate with real winters. That combination is the narrow band where this unit has few honest competitors: most 48-amp chargers are not built for that wall, and most chargers built for that wall stop at 40 amps. The OCPP support is a genuine bonus for anyone who thinks about a decade of ownership rather than a year.
Skip itif any of three things are true. If you rent or might move, buy a plug-in unit — the Classic Connectgives you the same case and cold rating on a plug. If your panel cannot spare 60 amps, the upgrade cost dwarfs the six miles an hour you are buying. And if the charger lives inside a closed garage, you are paying for an enclosure that will spend a decade doing nothing — the Emporia Level 2 or EVIQO 48A deliver the same 48 amps for less.
